Hydraulic Crimping Tool
enquiry button

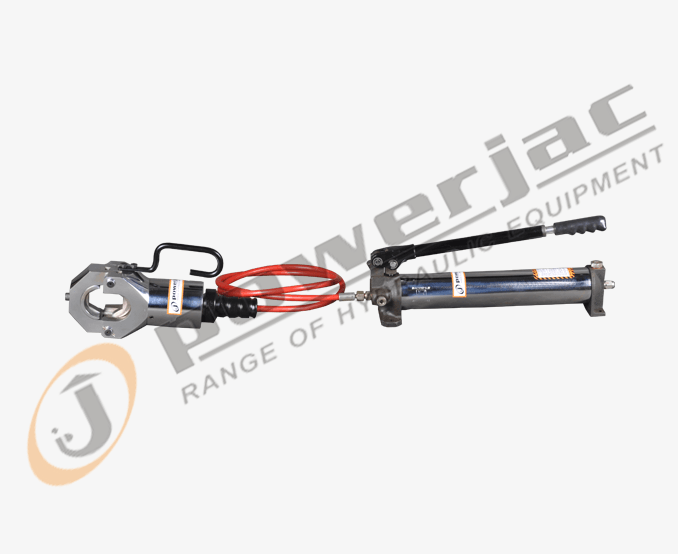

Hydraulic Crimping Tool

Model No. HCT - 185, 400 & 630 are suitable for AAAC ( All Aluminium Alloy Conductor )

Model No. HCT - 1000 is suitable for ACSR ( Aluminium Conductor Steel Reinforce )

Hydraulic Crimping Tools

Features / Benefits :
Light weight, Compact, easy to use.
Single acting spring return
High pressure long life seals.
Replaceable die sets of various sizes
Useful in Electric substations for crimping overhead-clamps / high tension line & connectors of aluminium & Steel at elevated locations upto 35 meters above ground level.
Crimping pattern is Hexagonal.

Model
Cable Size (mm2)
Die Sizes (mm2)
Die Suitable for
Suitable Hand Pump
HCT - 185
10-185
10,16,25,35,50,70,95,120,150,& 185
0.1(AL)
PHP 200 2
HCT - 400
10-400
10,16,25,35,50,70,95,120,150,185, 240,300 & 400
0.2(AL)
PHP 500/6
HCT - 630
10-630
10,16,25,35,50,70,95,120,150,185, 240,300,400, 500 & 630
0.2(AL)
PHP 500/6
HCT - 1000
10-1000
10,16,25,35,50,70,95,120,150,185, 240,300,400,500,630,800 & 1000
0.5(AL) & (ST)
PHP 500/12 or 2hp Power Pack

*Note : AL is Aluminium., ST is Steel



Single Point Die-Less Crimping Head

Model No. POWERJAC 60ID

Single Point Die-Less Crimping Head

Technical Specification :

Range of Crimping: 10-240 Sq.mm
Stroke: Up to 35.5mm
Crimping Head will be suitable for Copper tabular cable lugs and Connectors
Crimping force is 30-60 KN.
Operating Pressure is 700 Bar.
Length: 250mm Max.
Weight: 3 Kg. Max.
It shall be consisting of quick coupling mechanism for connecting to hydraulic hose.
