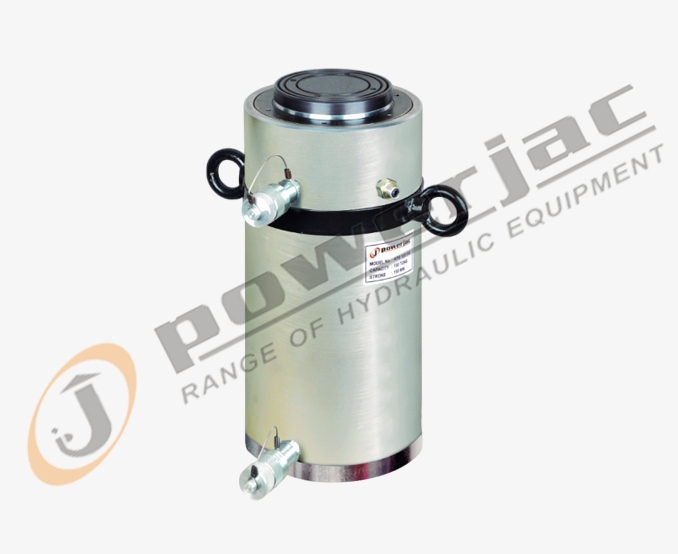

Aluminium Double Acting, Plain Ram, Hydraulic Jacks ( ADP-Series )

Capacity : 50 - 150 tons, Stroke : 100 - 160 mm, Working : 700 bar (Max)

Aluminium Double Acting, Plain Ram, Hydraulic Jacks
Aluminium Double Acting, Plain Ram, Hydraulic Jacks


MODEL NO.
Cap.
Fwd.
Cap.
Rtn.
Closed
Ht. 'CH'
Stroke
'S'
Ram Dia
'RD'
Outer Dia
'D'
Forward
volume
Return
volume
Approx
Weight
Suitable Hand Pump

tons.
tons.
mm.
mm.
mm.
mm.
cc.

kgs.

ADP-50/100
50
18
265
100
80
155
720
270
15
PHP-500/6 DCV
ADP-50/150
50
18
315
150
80
155
1080
420
20
PHP-500/6 DCV
ADP-100/100
100
44
325
100
100
195
1450
810
25
PHP-500/6 DCV
ADP-100/150
100
44
375
150
100
195
2150
1200
30
PHP-500/6 DCV
ADP-150/100
150
77
340
100
120
240
3100
1670
43
PHP-500/16 DCV*
ADP-150/150
150
77
390
150
120
240
3420
1990
50
PHP-500/12 DCV*

*PP-Power Pack

Features / Benefits :

  • High strength, light metal Aluminium alloy body for longevity.
  • Bore is roller burnished for work hardened smooth surface.
  • Double acting for quicker retraction to get ready for next operation.
  • Scraper / Wiper to arrest ingress of foreign particles.
  • Safety valve to prevent pressure intensification in the annular area.
  • Replaceable hardened steel saddle to prevent denting & bulging of ram head.
  • Larger steel base for stability.
  • Ergonomically handles to ease handling.
  • Bottom mounting holes meant for fixturing the steel base & not to be removed.
  • Golden ring prevents overshoot of ram. Golden ring withstand full load of the jack.
  • Customised Higher capacity, strokes available on request.
  • Quick connect couplers with plastic dust caps. Aluminium dust cap on request.
  • Port size 3/8th inch NPT.

Application :

For lifting loads at elevated location where weight of the jack is a concern.
Force available in either direction and can be used horizontally also.These jacks are for maintenance purpose only and not for production
