Capacity: 5-82, Stroke : 17-40 mm Working : 700 bar(Max)

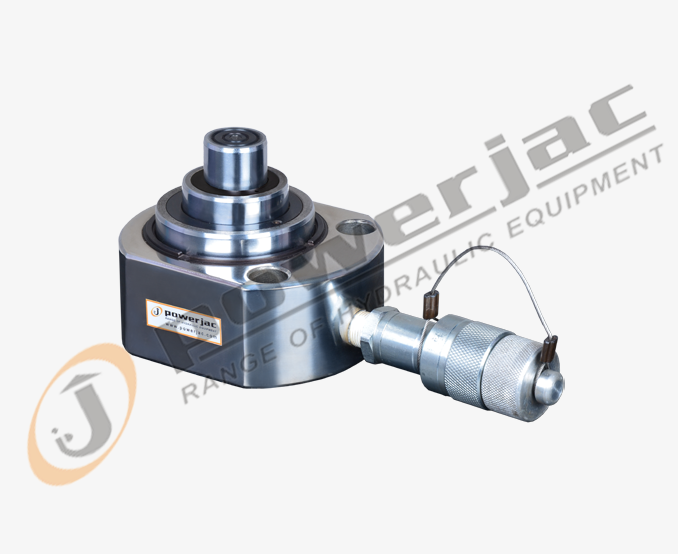

We are Manufacturer, Supplier, Exporter of: Ultra Low Height Load Return Telescopic Flat Jacks (TFJ-Series) from Belgaum, Karnataka, India.
Though the specified capacity & stroke of the jacks are designed for maximum safe working, we recommend to use the jacks for 85% of its rated capacity & stroke as safe working practice and for long life of the jacks.
Features / Benefits :- Compact and ultra low height telescopic design ,heat treated alloy steel body.
- Hard chrome plated rams to resist scoring and corrosion
- Single acting, spring return for smother lowering. High pressure long life seals.
- Top mounting holes for easy fixturing. Grooved ram acts as integral saddle.
- 'O' ring to arrest ingress of foreign particles.
- Port size 1/4 inch or 3/8 inch NPT.
- QCC with plastic dust cap. Aluminium Dust Cap on Request.
Application :
Technical Specification :
Powerjac's new ultra low height telescopic flat jack are specially designed to work in confined space. The user get longer stroke and can save time effort and eliminate the usage of temporary support during lifting of longer stroke. TFJ Series available in 2 stage & 3 stage lifting max 40 mm. Ideally used for lifting of cranes and heavy machinery etc.

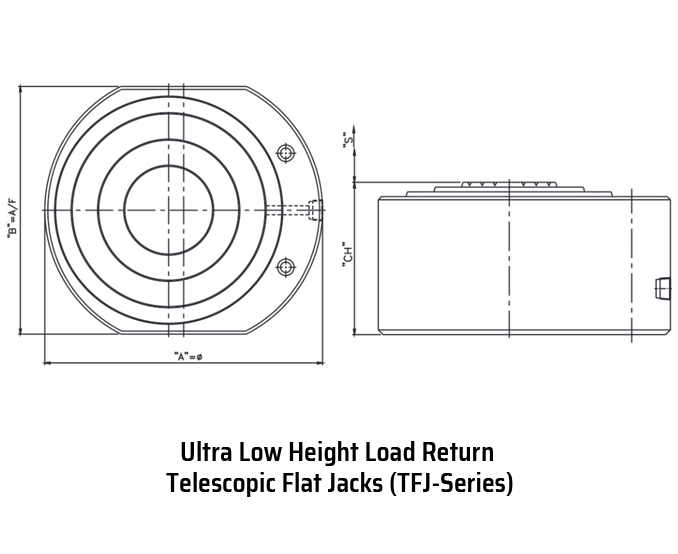

Technical Specification :
Model No. |
Closed Height 'CH' |
Capacity
|
Capacity at Final Stage |
Stroke |
Total Stro |
Ram Dia |
Over all Dim |
Total Oil Volume |
Approx Wt |
Suitable Hand Pump |
|||||
| First Stage | Second Stage | Third Stage | First Stage | Second Stage | Third Stage | OD "A" |
A/F "B" |
||||||||
mm. |
tons. |
tons. |
tons. |
tons. |
mm. |
mm. |
mm. |
mm. |
mm. |
mm. |
mm. |
cc. |
kgs. |
||
TFJ-5/17 |
45 |
12.5 |
5.0 |
- |
5.0 |
11 |
6 |
- |
17 |
25 |
85 |
62 |
24.1 |
1.6 |
PHP-200/2 |
TFJ-5/25 |
54 |
26.0 |
12.5 |
5.0 |
5.0 |
11 |
8 |
6 |
25 |
25 |
107 |
85 |
61.0 |
8.0 |
PHP-200/2 |
TFJ-12.5/19 |
55 |
26.0 |
12.5 |
- |
12.5 |
11 |
8 |
- |
19 |
40 |
107 |
85 |
56.8 |
7.2 |
PHP-200/2 |
TFJ -12.5/40 |
89 |
82.0 |
35.0 |
12.5 |
12.5 |
16 |
13 |
11 |
40 |
40 |
175 |
148 |
294.6 |
15.0 |
PHP-200/2 |
TFJ-26.5/28 |
75 |
57.0 |
26.5 |
- |
26.5 |
17 |
11 |
- |
28 |
60 |
145 |
125 |
334.7 |
8.5 |
PHP-200/2 |
TFJ-26.5/32 |
96 |
105.0 |
57.0 |
26.5 |
26.5 |
16 |
10 |
6 |
32 |
60 |
185 |
165 |
358.5 |
17.6 |
PHP-200/2 |
TFJ-35/29 |
90 |
82.0 |
35.0 |
- |
35.0 |
16 |
13 |
- |
29 |
70 |
175 |
152 |
305.3 |
15.0 |
PHP-200/2 |
TFJ-56/26 |
96 |
106.0 |
56.0 |
- | 56.0 |
16 |
10 |
- |
26 |
80 |
190 |
170M |
376.7 |
41.0 |
PHP-400/3 |
TFJ-82/27 |
114 |
158.0 |
82.0 |
- | 82.0 |
16 |
11 |
- |
27 |
11M |
220 |
200 |
610.5 |
68.2 |
PHP-400/3 |
