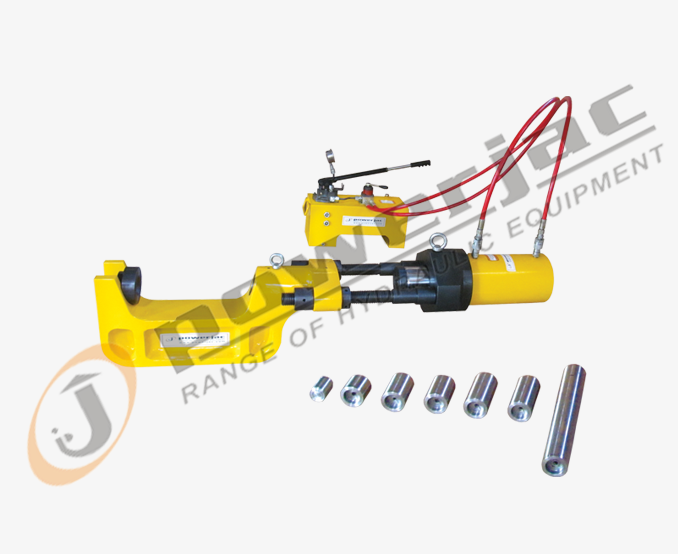

Track Link Pin Press (PTP-Series)


Track Link Pin Press

JCB Excavator 140

Track Link Pin Press
Track Link Pin Press


JCB Excavator 200

Track Link Pin Press
Track Link Pin Press


Model Capacity Stroke Throat of 'C' Frame Daylight of'C' Frame Toral Weight approx Approx Weight
  tons. mm. mm. mm. kgs. Kgs.
PTP 50 50 100 90 300 350 100
PTP 100 100 125 90 320 400 200
PTP 150 150 300 90 330 400 300

Application

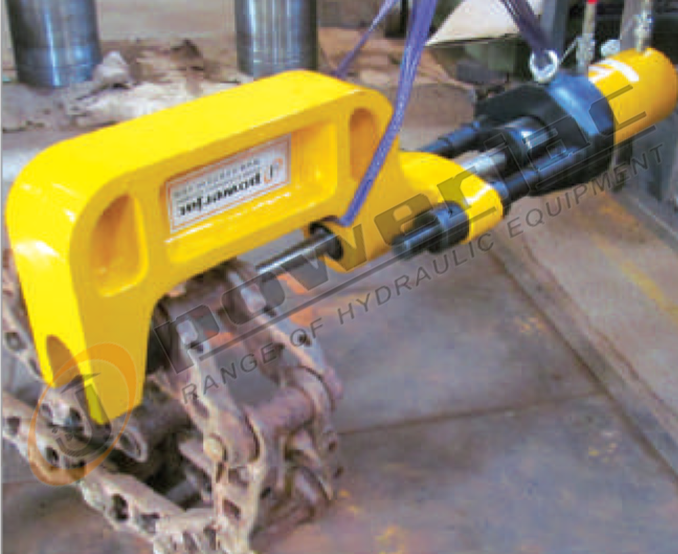

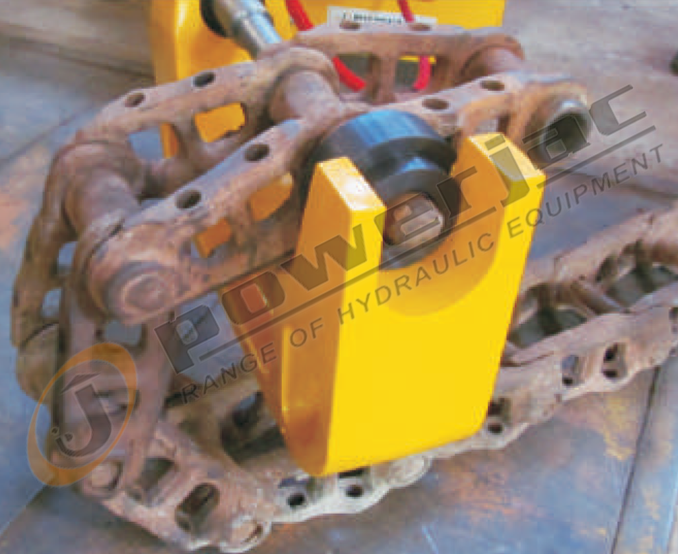

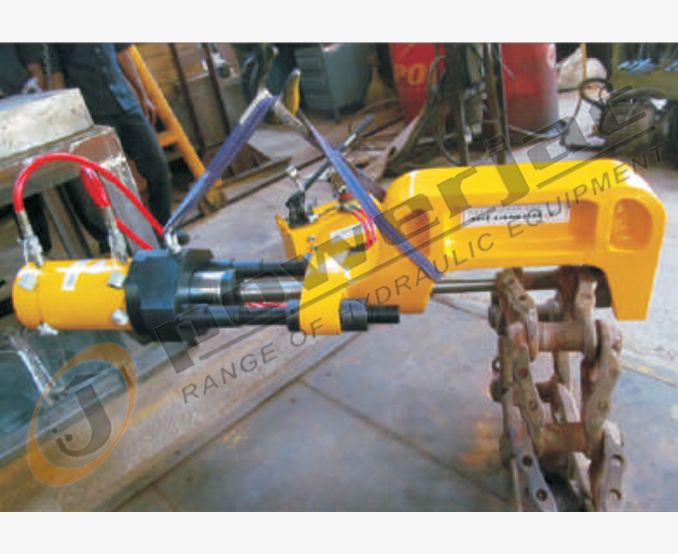

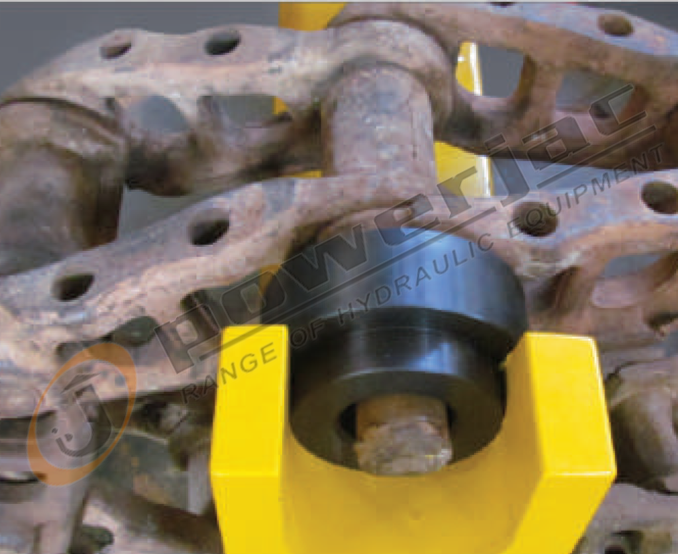

To remove & Install master pins, track pins & master bushes, of all types of excavators / Dozers


Features / Benefits

  • • Portable and can be performed at site and shop floor application
  • • Small crane / Hydra is required for handling during operation
  • • Avoid old age method of strenuous sledge hammering during removal and insertion of master pin
  • • Avoid gas cutting of chain segment for remval ofmaster pin.
  • • Alloy Steel casting 'C' frame with hardened alloy steel bushes
  • • Noise less in operation
  • • Qcc with Plastic dust cap. Aluminium Dust Cap on Request.
