Capacity : 20-200 tons, Stroke : 100-150 mm, Working : 700 bar (Max)

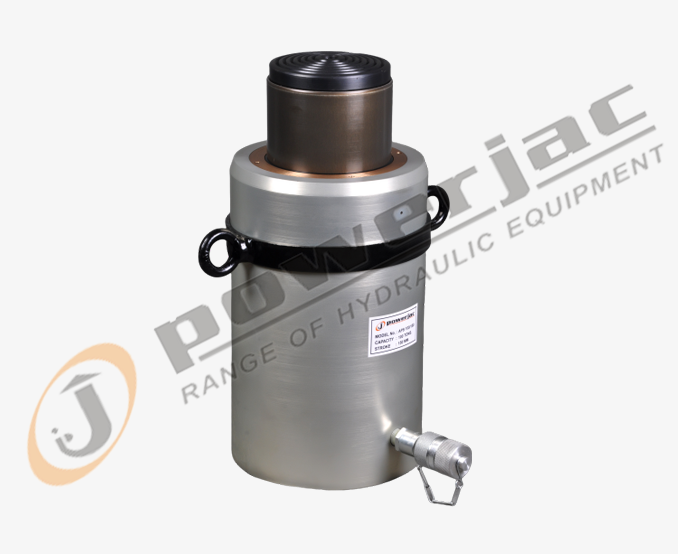

We are Manufacturer, Supplier, Exporter of: Aluminium Plain Ram, Hydraulic Jacks (APS-Series) from Belgaum, Karnataka, India.
Features / Benefits :- High strength, light metal Aluminium alloy body for longevity.
- Bore is roller burnished for work hardened smooth surface.
- Sliding part, i.e. the ram is hard anodized for scratch resistance.
- Single acting, plain ram, spring return design for self-lowering
- Scraper / wiper to arrest ingress of foreign particles.
- Replaceable hardened steel saddle to prevent denting & bulging of ram head.
- Larger steel base for stability.
- Ergonomic handles to ease handling.
- Bottom mounting holes meant for fixturing the steel base & not to be removed.
- Golden ring prevents overshoot of ram. Golden ring withstands full load of the jack.
- Customised Higher capacity, strokes available on request.
- Quick connect couplers with plastic dust caps. Aluminium dust cap on request.
- Port size 3/8th inch NPT.
Application :
Technical Specification :
For lifting loads at elevated location where weight of the jack is a concern. These jacks are for maintenance purpose only and not for production.
Technical Specification :
MODEL NO. |
Capacity |
Closed Ht. 'CH' |
Stroke "S" |
Ram Dia "RD" |
Outer Dia "D'M |
Oil volume |
Approx Weight |
Suitable Hand Pump |
| tons. | mm. | mm. | mm. | mm. | cc. | kgs. | ||
| APS-20/100 | 20 | 230 | 100 | 50 | 95 | 324 | 4.7 | PHP-200/2 |
| APS-20/150 | 20 | 280 | 150 | 50 | 95 | 467 | 5.1 | PHP-200/3 |
| APS-30/100 | 30 | 245 | 100 | 65 | 105 | 502 | 5.9 | PHP-200/3 |
| APS-30/150 | 30 | 295 | 150 | 65 | 105 | 754 | 6.4 | PHP-200/3 |
| APS-50/100 | 50 | 250 | 100 | 80 | 140 | 816 | 12.0 | PHP-500/6 |
| APS-50/150 | 50 | 300 | 150 | 80 | 140 | 1178 | 13.0 | PHP-500/6 |
| APS-100/100 | 100 | 285 | 100 | 120 | 195 | 1150 | 21.0 | PHP-500/6 |
| APS-100/150 | 100 | 335 | 150 | 120 | 195 | 2320 | 24.0 | PHP-500/6 |
| APS-150/100 | 150 | 300 | 100 | 140 | 235 | 2280 | 31.0 | PHP-500/6 |
| APS-150/150 | 150 | 350 | 150 | 140 | 235 | 3245 | 37.0 | PHP-500/12* |
| APS-200/100 | 200 | 320 | 100 | 170 | 280 | 4765 | 40.0 | PHP-500/12* |
| APS-200/150 | 200 | 370 | 150 | 170 | 280 | 4870 | 45.0 | PHP-500/12* |
